Falcon Transmission
CAN'T FIND YOUR PART? CALL 0491 845 484 TO ORDER

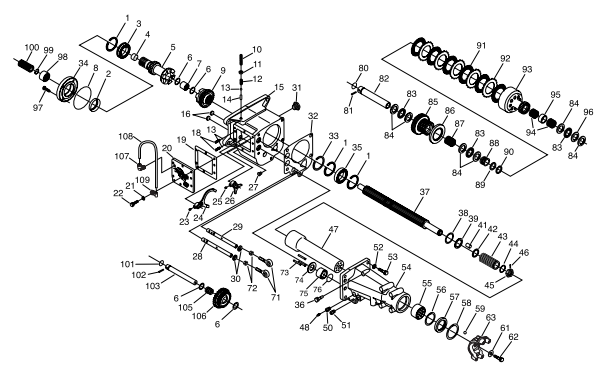

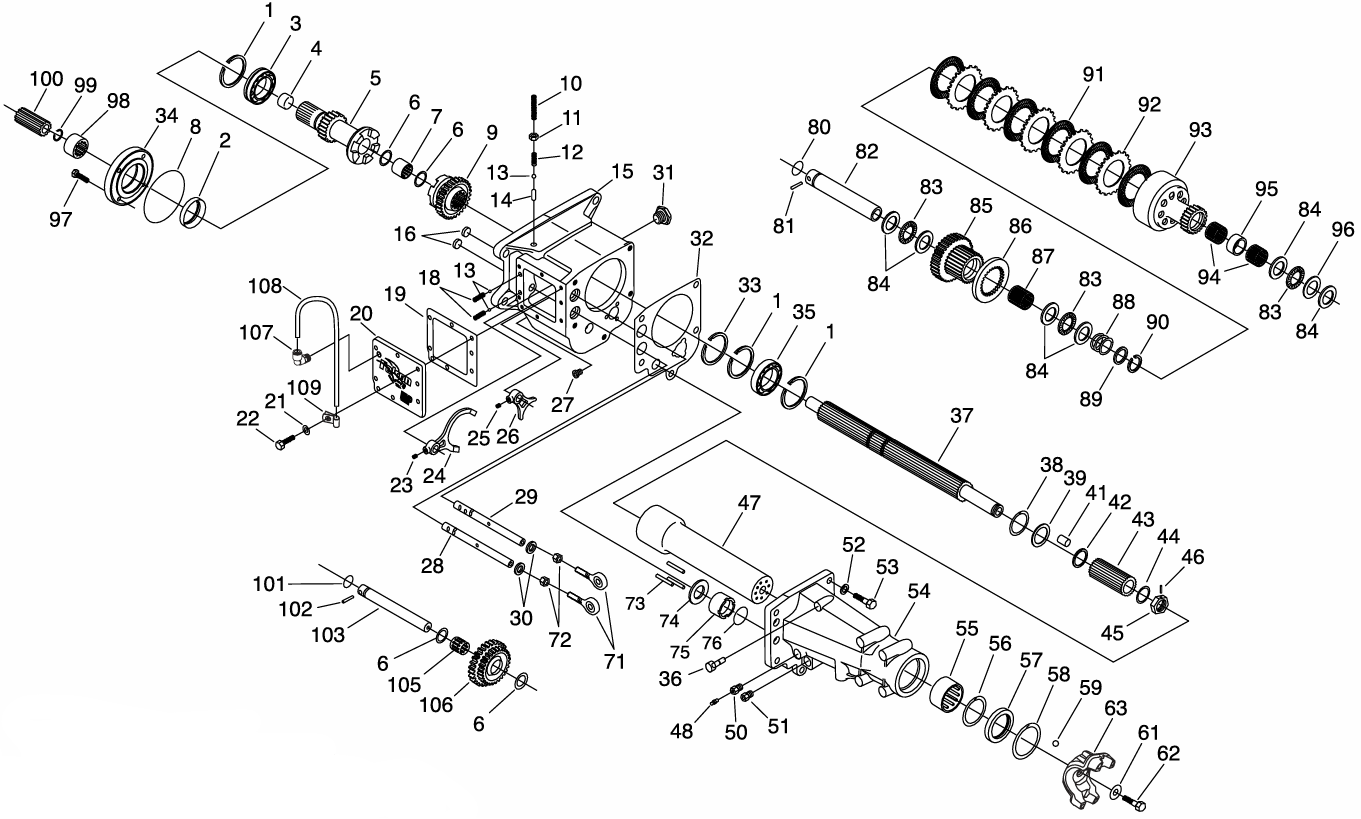

| # | PART NO | DESCRIPTION |
| KIT1 | WIN634762 | Basic Rebuild Kit |
| KIT2 | WIN63477-2 | Complete Rebuild Kit |
| 1 | WIN67682 | Bearing Retainer |
| 2 | WIN67256 | Seal, Seal Plate |
| 3 | WIN67555 | Bearing, Input Shaft |
| 4 | WIN68026 | Core Plug |
| 4 | WIN67860 | Core Plug, 1 Piece, Main Shaft |
| 5 | WIN62879 | Main Shaft |
| 5 | WIN62879-10 | Main Shaft, 1 Piece, 10 Spline |
| 6 | WIN68303 | Snap Ring |
| 7 | WIN67563 | Needle Bearing |
| 8 | WIN67483 | O’Ring, Seal Plate |
| 9 | WIN62878 | Slider Gear |
| 10 | WIN68030 | 3/8-16 x 1” Detent Screw |
| 11 | WIN68031 | 3/8-16 Jam Nut, Detent Screw |
| 12 | WIN62333 | Detent Spring, Top |
| 13 | WIN67398 | Detent Ball |
| 14 | WIN62105 | Shutter Pin |
| 15 | WIN61745 | Transmission Case |
| 16 | WIN68052 | Case Plug |
| 18 | WIN62332-S | Detent Spring |
| 19 | WIN62156 | Gasket, Side Cover |
| 20 | WIN62158 | Side Cover, Late Model |
| 21 | WIN67172 | 5/16” Washer |
| 22 | WIN68034 | 5/16-18 x 3/4” HHCS |
| 23 | WIN67837 | 5/16-24 x 1/2” SHSS |
| 24 | WIN61911 | Shift Yoke, Main |
| 25 | WIN68027 | 1/4-28 x 1/2” SHSS |
| 26 | WIN61691 | Shift Yoke, Reverse |
| 27 | WIN67874 | Drain Plug |
| 28 | WIN62212 | Shift Shaft, Reverse |
| 29 | WIN63491 | Shift Shaft, Low / Neutral / Direct |
| 30 | WIN67259 | Seal, Shift Shaft |
| 31 | WIN68035 | Fill Plug |
| 32 | WIN62155 | Gasket |
| 33 | WIN68331 | Snap Ring |
| 34 | WIN61744 | Seal Plate |
| 35 | WIN68662 | Bearing |
| 36 | WIN67772 | 1/8” NPT Plug |
| 37 | WIN62872 | Fixed Sliding Shaft |
| 38 | WIN68347 | Retaining Ring |
| 39 | WIN62877 | Retainer |
| 41 | WIN68721 | 1” Dowel |
| 42 | WIN62920 | Washer |
| 43 | WIN62921 | Splined Spacer |
| 44 | WIN62922 | Washer |
| 45 | WIN62923 | Nut |
| 46 | WIN68729 | 3/32 x 7/8” Spring Pin |
| 47 | WIN62873 | Sliding Shaft Assembly |
| 48 | WIN65313 | Bleeder |
| 50 | WIN65314 | Adapter, Bleeder |
| 51 | WIN68042 | Compression Fitting |
| 52 | WIN67811 | Washer |
| 53 | WIN68020 | 7/16-14 x 1 1/4” HHCS |
| 54 | WIN62871 | Extension Housing |
| 55 | WIN68660 | Needle Bearing |
| 56 | WIN67653 | Snap Ring |
| 57 | WIN67282V | Seal, Extension Housing |
| 58 | WIN67678 | Retaining Ring, Seal |
| 59 | WIN67347 | Steel Ball |
| 61 | WIN68372 | Belleville Washer |
| 62 | WIN68373 | 5/8-18 x 1” HHCS |
| 63 | WIN62874 | Rear Yoke |
| 71 | WIN67580 | Heim End |
| 72 | WIN68032 | Jam Nut, Heim End |
| 73 | WIN61845 | Push Rod |
| 74 | WIN61906 | Piston Thrust Washer |
| 75 | WIN61844 | Piston |
| 76 | WIN67482 | O’Ring, Piston |
| 80 | WIN67480 | O’Ring |
| 81 | WIN67991 | Roll Pin, Counter Shaft |
| 82 | WIN61737 | Counter Shaft |
| 83 | WIN67562 | Thrust Bearing |
| 84 | WIN67560 | Thrust Washer |
| 85 | WIN61734-36 | Clutch Pack Hub |
| 86 | WIN61736 | Clutch Pack Spacer |
| 87 | WIN67591 | Needle Bearing |
| 88 | WIN61912 | Clutch Spring |
| 89 | WIN61847 | Clutch Spring Spacer |
| 90 | WIN67687 | Retaining Ring |
| 91 | WIN61853-1 | Clutch Disk, Friction |
| 92 | WIN61852-1 | Clutch Disk, Steel |
| 93 | WIN61735 | Clutch Gear |
| 94 | WIN67559 | Needle Bearing |
| 95 | WIN62354 | Spacer |
| 96 | WIN67585 | Thrust Washer |
| 97 | WIN67195 | 5/16-18 x 3/4” 12pt. |
| 98 | WIN62407 | Collar |
| 99 | WIN67639 | Snap Ring, Collar |
| 100 | WIN62901 | Input Shaft, 18/18 Splines |
| 101 | WIN67481 | O’Ring, Reverse Shaft |
| 102 | WIN67992 | Roll Pin, Reverse Shaft |
| 103 | WIN61743 | Reverse Counter Shaft |
| 105 | WIN67563 | Needle Bearing |
| 106 | WIN61742 | Reverse Idler Gear |
| 107 | WIN68961 | Breather Elbow |
| 108 | WIN68962 | Breather Tube / Per Inch |
| 109 | WIN68973 | Clamp, Breather Tube |
