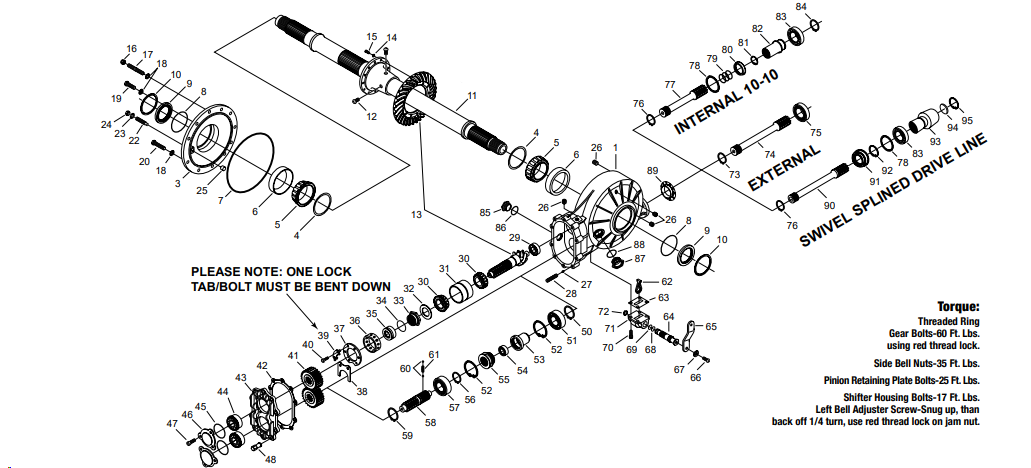

Pro Eliminator

CAN'T FIND YOUR PART? CALL 0491 845 484 TO ORDER
# PART NO DESCRIPTION
1 WINK2225UHD Ultra HD Mag Pro Eliminator Center
3 WINK696402 Magnesium Pro Eliminator Left Side Bell
3 WIN696402 Aluminum Pro Eliminator Left Side Bell
4 WIN6115 Shim Kit, Axle Bearing
5 WIN7358 Bearing Cone, Axle
6 WIN7357 Bearing Cup, Side Bell
7 WIN7403T O’Ring, Side Bell
8 WIN7433 O’Ring, Side Bell Seal
9 WIN7224 Seal, Side Bell
10 WIN7626 Internal Snap Ring, Side Bell Seal
11 WIN5778A Aluminum Live Axle (Specify Offset)
12 WIN7805 1/2-20 x 1” BHCS
13 WIN5400 Ring & Pinion, 4.86 Standard
14 WIN7815 3/8” Belleville Washer
15 WIN7852 Ring Gear Bolt
16 WIN7177 7/16-20 Flanged Locknut, Use w/2266
16 WIN7177N 7/16-20 Nylon Locknut, Use w/2266T
17 WIN2266 Stud, Steel
17 WIN2266T Stud, Titanium
18 WIN7178 7/16” SAE Flatwasher
19 WIN7117 7/16-14 x 1-1/4” HHCS
20 WIN7787 7/16-14 x 1” HHCS
22 WIN6149 1/2-13 Adjusting Screw
23 WIN7167 1/2” SAE Flatwasher
24 WIN7137A 1/2-13 Aluminum Jam Nut
25 WIN5010 Thrust Block
26 WIN7874S Plug w/O’Ring
27 WIN7398 5/16” Dia. Steel Ball, Gear Cover Stud
28 WIN7802 3/8-16 x 1-3/4” Stud, Gear Cover
29 WIN7331 Roller Bearing, Pinion Nose Shaft
30 WIN7308 Bearing Cone, Pinion Shaft
31 WIN7307 Double Bearing Cup, Pinion Shaft
32 WIN5055 Bearing Washer, Pinion
33 WIN6485R Posi-Lock Nut 1-5/16-20-2B Thread
34 WIN7445 O’Ring, Posi-Lock Retainer
35 WIN6484 Posi-Lock Retainer
36 WIN5020 Retaining Ring, Pinion
37 WIN6296A Retainer Plate, Pinion
38 WIN6267 Bearing Retainer
39 WIN2374 Lock Tab, Pinion Retainer Plate
40 WIN7110 3/8-16 x 1” HHCS, Retainer Plate
41 WIN8500 Quick Change Gear Set
42 WIN6729 Gasket, Gear Cover
43 WIN6655HD HD Gear Cover, Less Bearings
44 WIN7521 Double Row Ball Bearing w/Snap Ring
45 WIN7476 O’Ring, Bearing Cap
46 WIN1667 Bearing Cap, HD Gear Cover
47 WIN7955 1/4-20 x 1” SHCS, Bearing Cap
48 WIN7794ASBK 3/8-16 Aluminum Short High Nut
50 WIN7673 Snap Ring, Stationary Coupler
51 WIN7391 Ball Bearing, Stationary Coupler
52 WIN7636 Internal Snap Ring, Rear Bearing
53 WIN6252 Stationary Coupler
54 WIN7392 Small Bearing, Stationary Coupler
55 WIN6265 Sliding Coupler
56 WIN7637 External Snap Ring, Stub Shaft
57 WIN7390 Shielded Ball Bearing, Stub Shaft
58 WIN6250 Stub Shaft
58 WIN6250VHD Stub Shaft, VascoMax®
59 WIN7610 Snap Ring, Lower Shaft
60 WIN7347 1/4” Diameter Steel Detent Ball
61 WIN6318 Detent Spring
62 WIN1524 Shifter Arm, Cast
63 WIN6515 Gasket, Shifter Housing
64 WIN6251 Shifter Shaft
65 WIN6496 Shift Arm
66 WIN7109S 3/8-24 x 3/4” HHCS, Shift Arm
67 WIN7815 3/8” Belleville Washer, Shift Arm
68 WIN7442 O’Ring, Shifter Shaft, Large
69 WIN7443 O’Ring, Shifter Shaft, Small
70 WIN7795 5/16-18 x 7/8” 12pt, Shifter Housing
71 WIN6264 Shifter Housing, Aluminum
72 WIN7631 External Snap Ring, Shifter Shaft
73 WIN7605 Lower Shaft Snap Ring
74 WIN6249 Standard Lower Shaft, Shifter
74 WIN6249T Standard Lower Shaft, Shifter, Titanium
75 WIN7383F Special Sealed Ball Bearing, Lower Shaft
76 WIN7660 Lower Shaft Snap Ring
77 WIN667801 Standard Lower Shaft
78 WIN6680 Spacer, Front Bearing
79 WIN7452 O’Ring, Lower Shaft w/Internal Coupler
80 WIN7242 Seal, Internal Coupler
80 WIN728032 Seal, Internal Coupler, 10-32
81 WIN7664 Internal Snap Ring, Internal Coupler
82 WIN6676 Internal 10-10 Coupler, Steel
82 WIN6676A Internal 10-10 Coupler, Aluminum
82 WIN667632 Internal 10-32 Coupler
83 WIN7531 Sealed Ball Bearing, Internal 10-10
84 WIN7657 External Snap Ring, Internal 10-10
85 WIN685701 Small Inspection Plug 1-1/16-12 Thread (#12AN)
86 WIN7454 O’Ring, Inspection Plug
87 WIN529001 Large Inspection Plug 1-5/8-12 Thread (#20AN)
88 WIN7453 O’Ring, Inspection Plug
89 WIN3053 Bearing Liner
90 WIN2973 Lower Shaft, Steel
90 WIN2973T Lower Shaft, Titanium
91 WIN7280 Seal
92 WIN7619 Snap Ring
93 WIN2975 Coupler
94 WIN7918 Core Plug
95 WIN8337 Retaining Ring
