Winters QC Rearend

CAN'T FIND YOUR PART? CALL 0491 845 484 TO ORDER

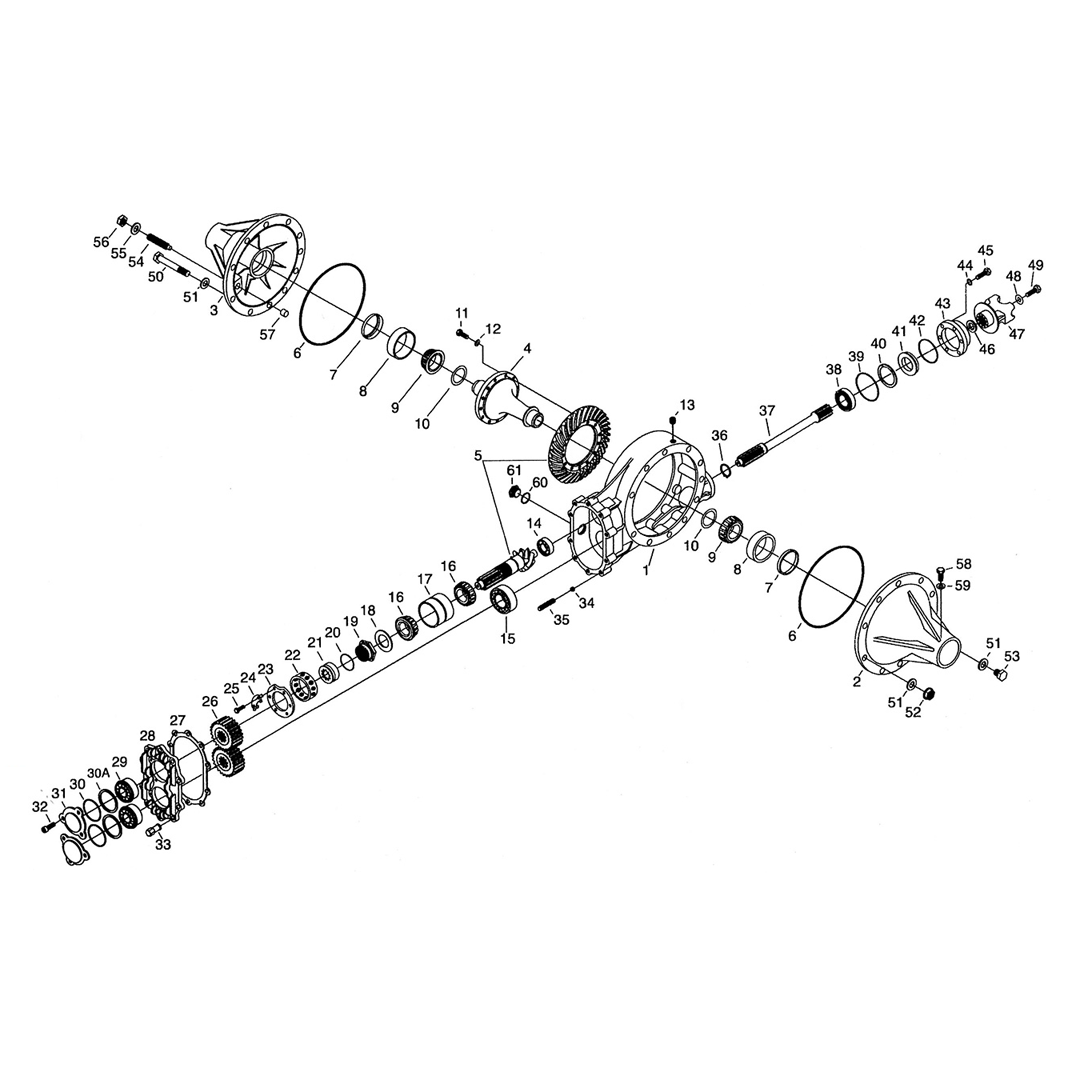

#	PART NO	DESCRIPTION
1	WIN5840	Aluminum “Sprint” Center Section
2	WIN12080M-8208-B	Aluminum 8 Rib Right Side Bell
3	WIN12083M-8208-B	Aluminum 8 Rib Left Side Bell
4	WIN5034-11A	31 Spline Aluminum Spool
5	WIN5400	4.86 Ratio Ring & Pinion, Standard (10 Spline)
5A	WIN5715	Ring & Pinion, 4.11
6	WIN7403	O’Ring, 8 Rib Bell
6	WIN7403T	O’Ring, 4 & 6 Rib Bell
7	WIN7205	Seal, Side Bell
7	WIN7283V	Seal, Side Bell, Viton
8	WIN7310	Bearing Cup, Side Bell
9	WIN7309	Bearing Cone, Steel Spools & Differentials
9	WIN7340	Bearing Cone, Aluminum Spools & Differentials
10	WIN5295	Shim Kit, Aluminum Spools & Differentials
11	WIN7852ARP	Ring Gear Bolt, Threaded Ring Gear
12	WIN7815	3/8” Belleville Washer, Threaded Ring Gear
13	WIN7111B	3/8” Recessed Socket Head Pipe Plug
14	WIN7331	Roller Bearing, Pinion Nose
15	WIN7339	Shielded Ball Bearing, Lower Shaft
16	WIN7308	Bearing Cone, Pinion Shaft
17	WIN7307	Double Bearing Cup, Pinion Shaft
18	WIN5055	Bearing Washer
19	WIN6485R	Posi-Lock Nut, Pinion Shaft (1-5/16-20 Thread)
20	WIN7445	O’Ring, Posi-Lock
21	WIN6484	Posi-Lock Retainer, Pinion Shaft
22	WIN5020	Retaining Ring, Pinion
23	WIN6296A	Retaining Plate, Pinion
24	WIN2374	Lock Tab
25	WIN7110	3/8-16 x 1” HHCS, Retaining Plate
26	WIN8500	Quick Change Gear Set (Not Included)
27	WIN6729	Gasket, Gear Cover
28	WIN6655HD	Gear Cover, Less Bearings
29	WIN7521	Ball Bearing, Gear Cover
30	WIN7406	O’Ring, Bearing Cap
30A	WIN7496	Back-up Ring, O’Ring
31	WIN1667	Bearing Cap
32	WIN7955	1/4-20 x 1” SHCS
33	WIN7794AS	3/8-16 Aluminum High Nut
34	WIN7398	5/16” Diameter Ball, Gear Cover
35	WIN7802	3/8-16 x 1 3/4” Stud, Gear Cover
36	WIN7610	Retaining Ring, Lower Shaft
37	WIN5003-02	Standard Lower Shaft
37	WIN1550	Option, Gundrilled, Open Drive Lower Shaft
38	WIN7390	Front Ball Bearing, Lower Shaft
39	WIN7413	O’Ring, Seal Plate
40	WIN7653	Retaining Ring, Seal Plate, .375” Seal
40	WIN7652	Retaining Ring, Seal Plate, .750” Seal
41	WIN7204	Seal, Seal Plate, .375” Thin Seal
41	WIN7204T	Seal, Seal Plate, .750” Thick Seal
41	WIN7204V	Seal, Seal Plate, .750” Viton Seal
42	WIN7474	O’Ring, Seal
43	WIN5018-01M	Seal Plate, .750” Seal
44	WIN7114	3/8” SAE Flatwasher
45	WIN7110	3/8-16 x 1” HHCS, Seal Plate
45	WIN7107	3/8-16 x 1 1/4” HHCS, Seal Plate
46	WIN6532	Spacer, Drive Yoke (Not used with 3533)
47	WIN5038	Drive Yoke, Steel, 1310 Series
47	WIN5038B	Drive Yoke, Steel, Threaded, 1310 Series
47	WIN5038AS	Drive Yoke, Billet Aluminum, 1310 Series
47	WIN5038AS-32	Drive Yoke, Billet Aluminum, 32 Spline
47	WIN3533	Drive Yoke, Steel with Integral Spacer
48	WIN5037	Retaining Washer, Drive Yoke
49	WIN7109Y	3/8-24 x 1” HHCS, Drive Yoke
50	WIN7176	7/16-20 x 5 1/2” Thrubolt
51	WIN7178	7/16” SAE Flatwasher, Thrubolt
52	WIN7177	7/16-20 Flanged Locknut, Thrubolt
53	WIN7117	7/16-14 x 1 1/4” HHCS
54	WIN7155	1/2-13 Adjusting Screw, 8 Rib Side Bell
54	WIN6149	1/2-13 Adjusting Screw, 4 & 6 Rib Side Bell
55	WIN7167	1/2” SAE Flatwasher, Adjusting Screw
56	WIN7137	1/2-13 Jam Nut, Adjusting Screw
57	WIN5010	Thrustblock, Adjusting Screw
58	WIN7109	3/8-24 x 1” HHCS, 4 Rib Side Bell
58	WIN7109S	3/8-24 x 3/4” HHCS, 6 & 8 Rib Side Bell
59	WIN7114	3/8” SAE Flatwasher
60	WIN7454	O’Ring, Inspection Plug
61	WIN3643	Inspection Plug
62	WIN3261	Inspection Plug, Side Bell
63	WIN7453	O’Ring, Inspection Plug, Side Bell
64	WIN2966T	Top Mount Breather
65	WINK12088	Magnesium Center Section
66	WIN12175	Billet Aluminum 6 Bolt Gear Cover
67	WIN8447	O’Ring, Billet Aluminum 6 Bolt Gear Cover
67	WIN12185	Gasket, Billet Aluminum 6 Bolt Gear Cover
68	WIN12417	#10-24 x 1/2” FHCS Bearing Retainer
69	WIN2966-02	Breather Assembly (Sold Separately)
70	WIN7874S	Steel Level Plug with O’Ring
