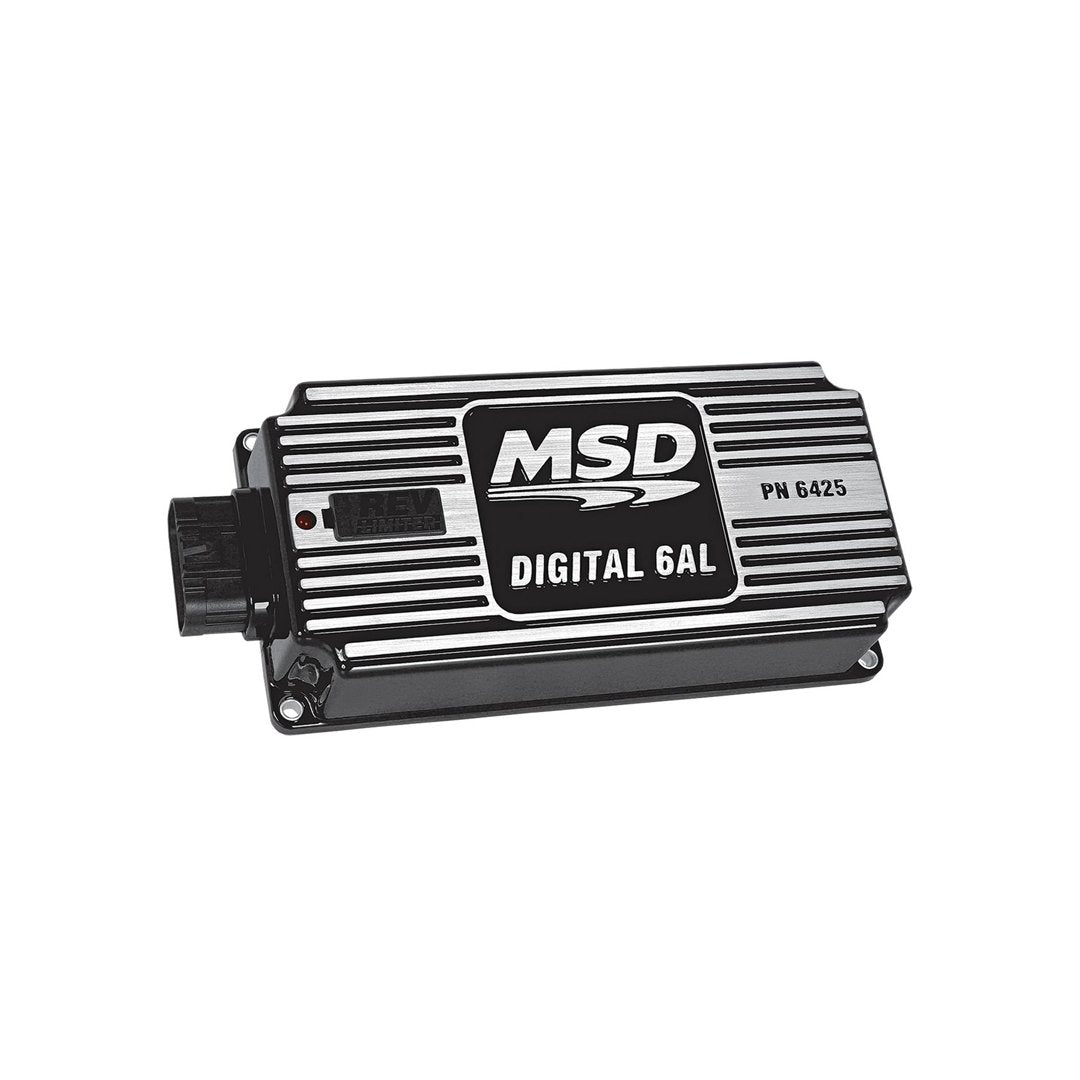

Msd 6al Digital Ignition Box With Rev Limiter - Black Msd64253

6-Series Ignition Controls

• With Soft Touch Rev Control

• Higher output with 530 primary volts and 135mJ of spark energy

• Efficient components use less current to produce more power

• Set an rpm limit on the 6AL with two rotary dials

• Same bolt pattern as the original 6AL with a lower profile housing

• Built-in LED for system checks

• All wires exit the same side through a locked, sealed connector

• Compatible for 4, 6 or 8-cylinder engines - Operating Specifications:

• Secondary Voltage: 45,000 Volts

• Spark Series Duration: 20 degree Crankshaft Rotation

• RPM Range: 15,000 RPM with 14.4 Volts

• Voltage Required: 12-15 Volts, 7 Volt Start

• Current Draw: .7 Amp per 1,000 RPM

Weight - 1.7 lbs.,

Dimension - 8" L x 4" W x 1.825" H
